WiFi PTZ Cameras
Specifications:
- Resolution: 3MP HD Wireless PTZ Security Cameras
- Image Sensor: 1/2.9" 3M Pixel CMOS
-
Min. Illumination:
- 0.1 Lux @ F1.2 (color mode)
- 0.05 Lux @ F1.2 (B&W mode)
- 0 Lux (IR LED on)
- S/N Ratio: ≥39dB
- Electronic Shutter: 1/5 - 1/20,000s, supports slow shutter
- Day & Night Mode: Auto ICR filter, fixed black & white, fixed color, external control
- Gain Control: Auto/manual
- White Balance: Auto, indoor, outdoor, sodium lamp mode, manual
- Wide Dynamic Range: Supports digital wide dynamic
- Digital Noise Reduction: Supports DNR, 3DNR
- Video Compression: H.265 Main profile / H.264 Main profile / M-JPEG
- Audio: G711 compression, PCM; 1CH input: linear, impedance 1KΩ; 1CH output: linear, impedance 600Ω
- Max. Resolution: 1920x1080 @ 20fps
-
Video Resolutions:
- Main stream: 1920x1080, 1280x720, 720x576, 640x480
- Sub-stream: 640x480, 480x360, 352x288, 176x144
- Output Bit Rate: Constant bit rate (CBR) or variable bit rate (VBR), 32K~10M
- Motion Detection: Supports 4 motion detection zones
- Private Zone: Supports 4 customized zones
- PT Control: Pan 320°, tilt 90°, supports 254 preset points
- Network Protocol: TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DNS
- Wireless Spectrum: 2.4G
- Wireless Standard: IEEE802.11b/g/n
-
Wireless Transmission Distance:
- Up to 200M without barriers
- Over 50M through walls
- Power Supply: 12VDC @ 1A
- Protection Grade: IP64, TVS 3000V thunderproof, electrical surge proof, voltage transient proof
- Size: 160×90×150mm
- Weight: ≤1kg
- Working Temperature: -30°C to 50°C
- Working Humidity: 0%-90% RH (no condensation)

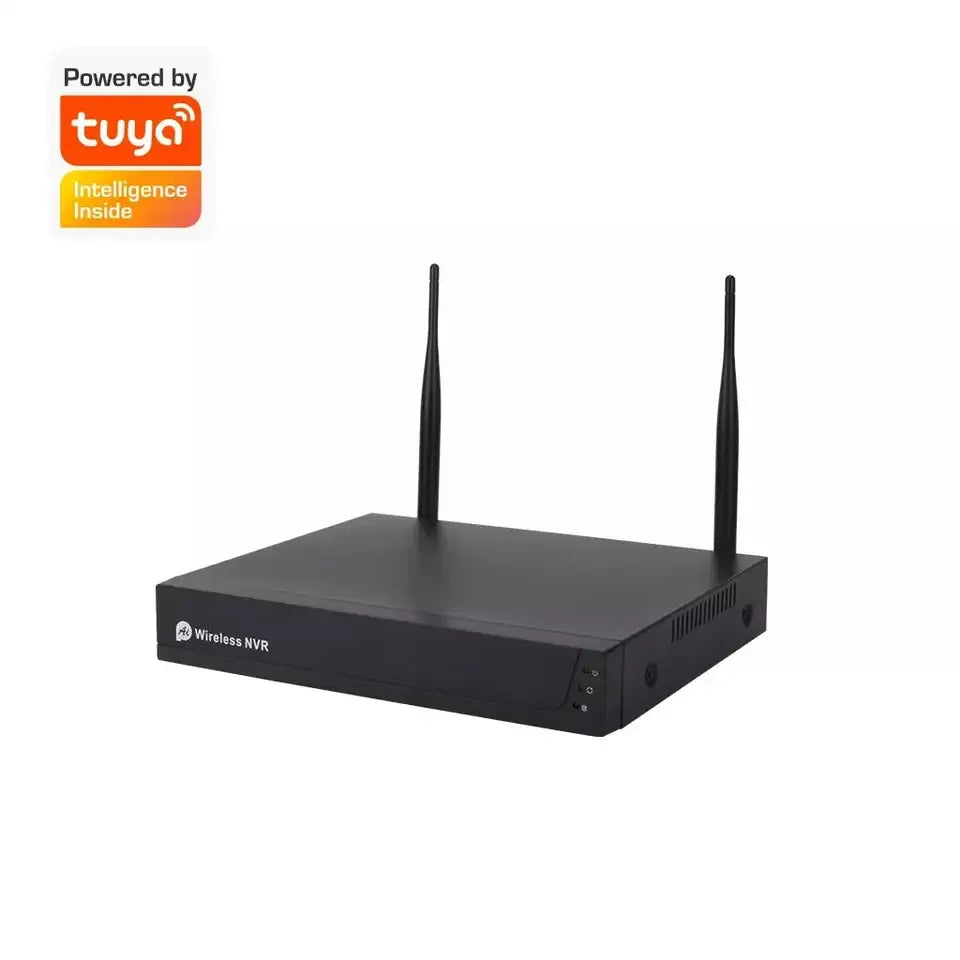

Wireless NVR Kit
Model: 4CH WIFI 3MP HD NVR
System Specifications:
- Main Processor: Industrial-grade embedded microcontroller
- Operating System: Embedded Linux
Video Specifications:
- Image Decode Standard: H.265 Main Profile Level 4.2
- Video Output: 1080P @ 60fps
- Video Input: 43MP / 41080P / 4*960P
Audio Specifications:
- Decode Standard: G.711
- Voice Intercom: Not available
Recording & Playback:
- Recording Method: Manual, motion detection, timing, alarm recording
- Recording Playback: 4CH 960P or 4CH 1080P or 4CH 3MP synchronous playback
- Playback Speed: 1/4, 1/2, 2X, 4X
-
Storage & Backup:
- Occupied Space/CH: 3MP = 30G/day
- Backup Method: Supports HD storage and USB backup
Network Specifications:
- Network Protocol: TCP/IP, HTTP, DHCP, UDP, RTP, RTSP, FTP, NTP, P2P
- Mobile App: Supports Tuya app
- Browser Support: IE browser
Wireless Specifications:
- Wireless Module: Built-in professional controlled wireless receiving module
- Antenna: 2PCS 5dB antenna
- Transmission Distance: Up to 300M without barriers
Interface:
- Video Input: 4CH 3MP network input
- Video Output: 1CH VGA output, 1CH HDMI output
- Network Interface: RJ45 10M/100Mbps adaptable Ethernet interface
- USB Ports: 2 USB 2.0 interfaces
- HDD Support: Internal support for 1 SATA HDD (up to 6T)
Others:
- Power Supply: DC +12V / 3A
- Power Consumption: 3W (without HDD and PoE)
- Working Temperature: -10℃ to +55℃
- Working Humidity: 10% to 90%
