Line Arrays
A line array works by coupling several elements into a single controlled source, so the vertical pattern is set by the array rather than by one cabinet. That is what...
Filters
Sort Most relevant
No products found.
Try using fewer filters, or clear all filters.
A line array works by coupling several elements into a single controlled source, so the vertical pattern is set by the array rather than by one cabinet. That is what keeps level consistent from the front row to the back wall in a large room. These elements are sold to be flown in multiples with matched rigging, and the array geometry matters more to the result than any single cabinet specification.
Compare the range
Specifications below are taken from the product data for each item in this collection. Rows with fewer than two published figures are omitted. Sorted by price.
| Model | Frequency response | Max SPL (dB) | Impedance | Power (W) | Price (USD) |
|---|---|---|---|---|---|
| LA-8 | 65Hz-19kHz | — | HF: 8Ω, LF: 16Ohm | — | $708.99 |

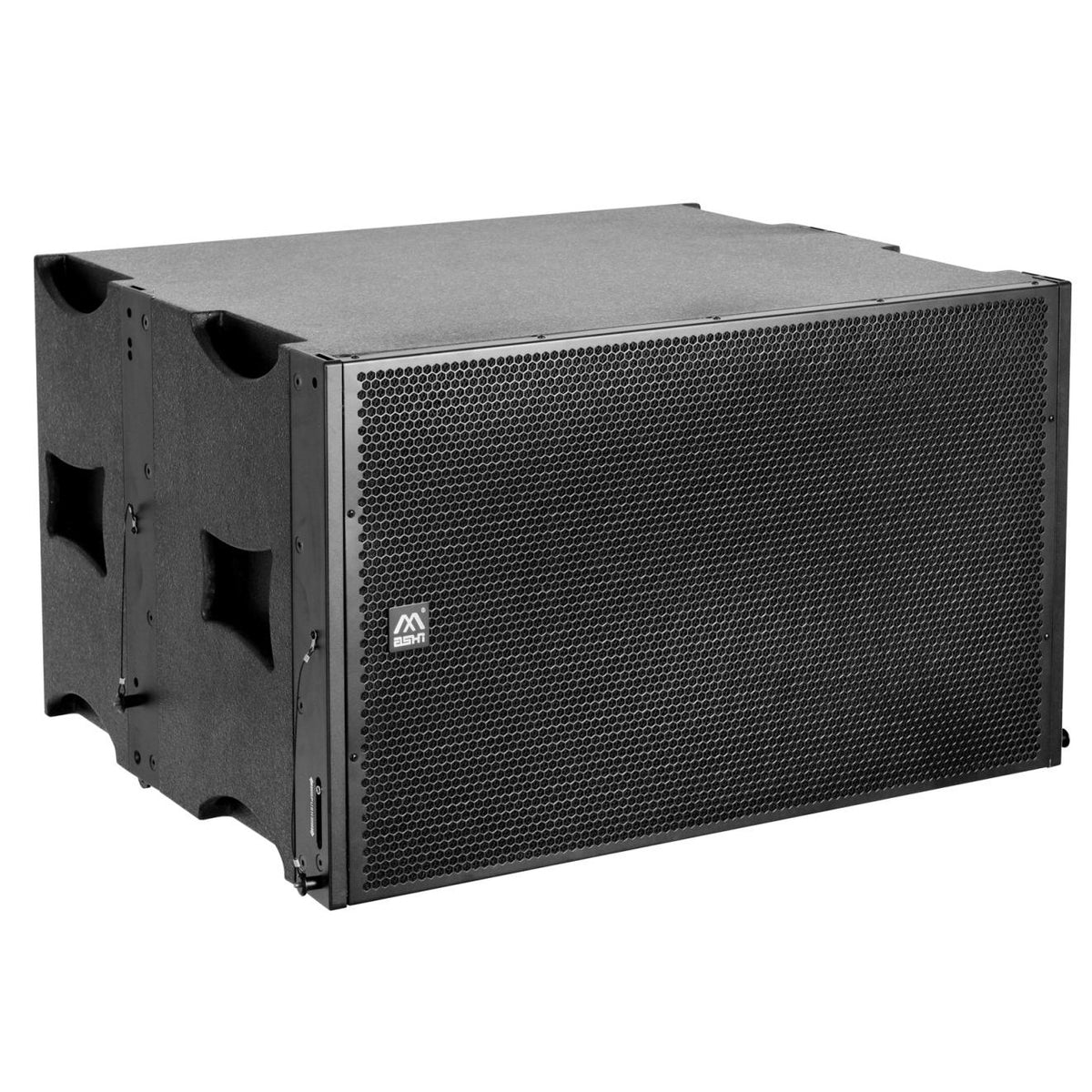

| LA-8 | 45Hz-200Hz | 120dB | 8Ω | 600 | $748.99 |
| LA-10 | 50Hz-19kHz | — | HF: 8Ω, LF: 16Ohm | — | $787.99 |
| LA-10 | 45Hz-200Hz | 123dB | 8Ω | 800 | $787.99 |

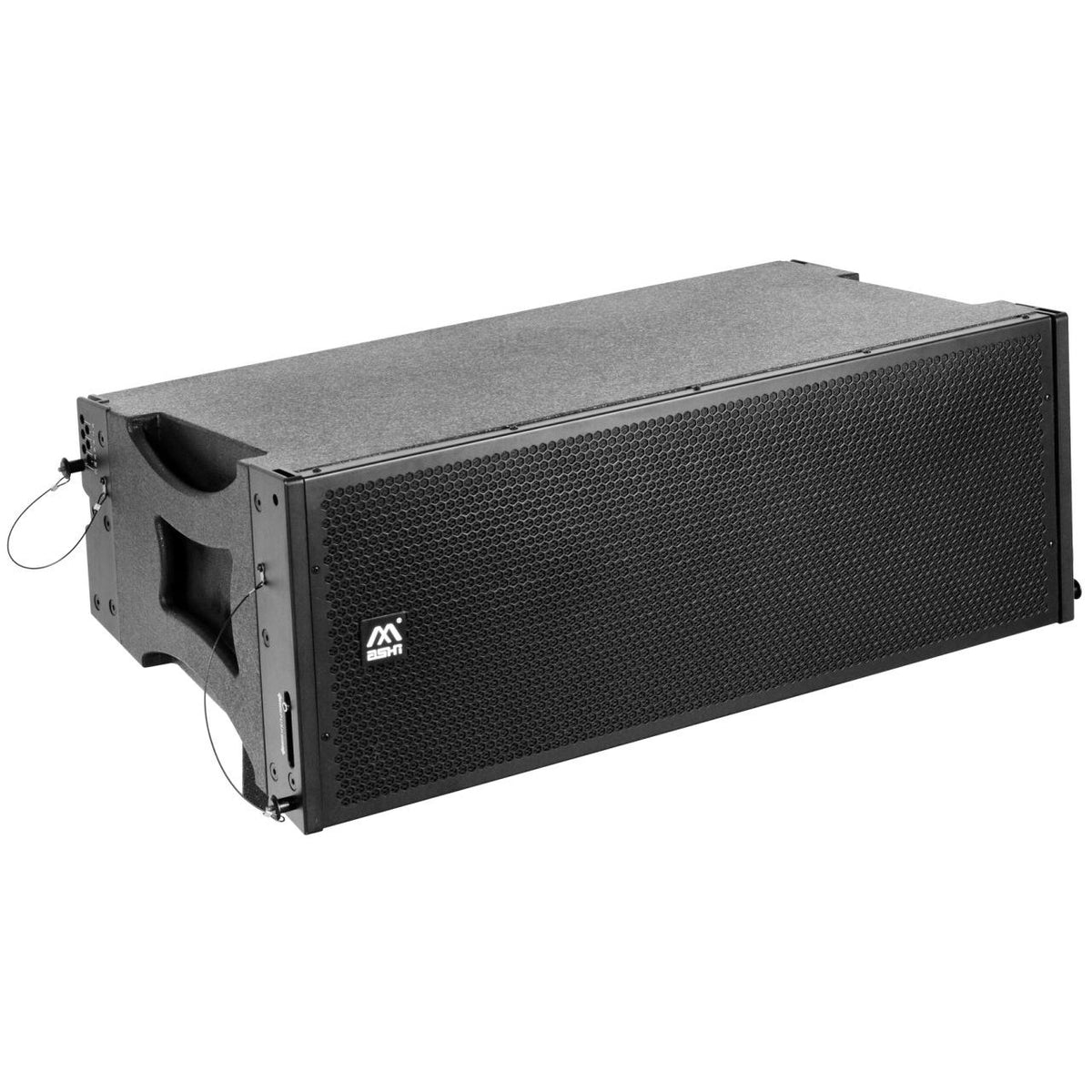

| LA-12 | 70Hz-19kHz | 130dB (MAX) | HF: 8Ω, LF: 16Ohm | — | $906.99 |
| M18 | 88Hz-20kHz (±3dB) | — | 4Ω | — | $1733.99 |
| M18 | 88Hz-20kHz (±3dB) | — | 16Ω | 350 | $1773.99 |
| M18 | 88Hz-20kHz (±3dB) | — | 8Ω | — | $1988.99 |
| M215 | 80Hz-20kHz (±3dB) | — | 8Ω | — | $2514.99 |

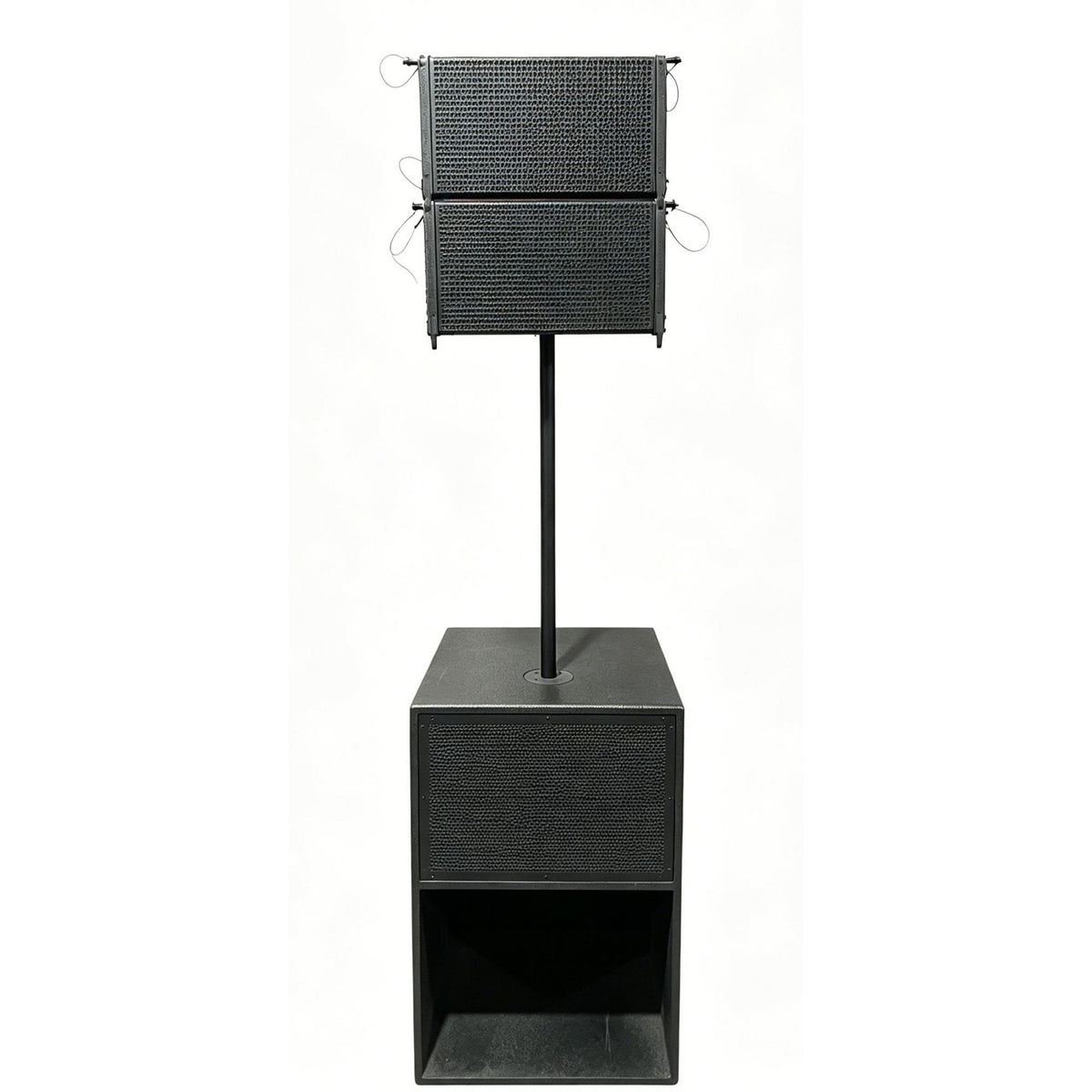

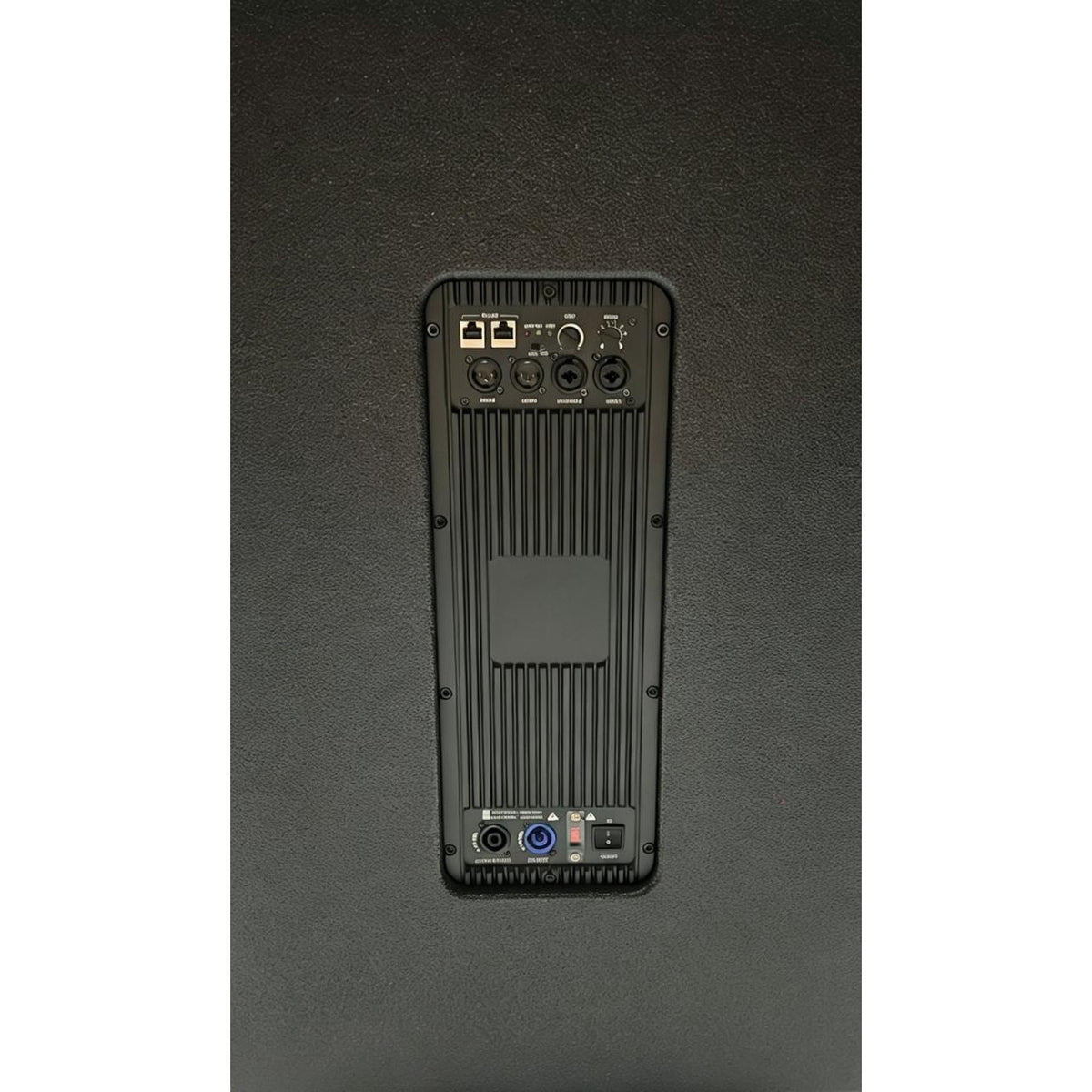

| Active line array kit | 65Hz-20kHz (±3dB) | 120dB (continuous) | 16Ω | 600 | $5359.99 |
| AS208 | 70Hz-20kHz (±3dB) | 127dB | 16Ω | 600 | $6619.99 |
How to choose a line array
Understand what you are buying. A single line array element on a stick is not a line array; it is an awkward point source. The benefit comes from coupling several elements with the correct splay angles so the array behaves as one tall source with controlled vertical coverage. Budget for the quantity the room needs.
Let the room set the element count. Longer rooms need more elements to cover the distance without the front rows being far louder than the back. Deeper balconies may need a separate hang or delay cabinets. This is a prediction exercise, and the cabinet specification alone will not answer it.
Plan the rigging as part of the purchase. Flying hardware, splay settings and load ratings are specific to the system. Load figures must come from the manufacturer's load table and be signed off by a qualified rigger. No product page is a substitute for that.
Match amplification and processing to the array. Array elements depend on correct crossover and alignment to behave as a single source. The processing is not an accessory here, it is part of making the array work.
Add subwoofers deliberately. Array elements handle mid and high frequencies; low end comes from separate subwoofers whose placement, in a line or in cardioid arrangements, changes the coverage pattern significantly.
Frequently asked questions
How many line array elements do I need?
It depends on room depth and the coverage you need, not on a fixed number. Longer rooms need more elements so the level stays even from the front row to the back.
Can I use one line array element on a speaker stand?
It will produce sound but not the benefit of an array. The controlled vertical coverage comes from coupling several elements at the correct splay angles.
Do line arrays need separate subwoofers?
Generally yes. Array elements cover mid and high frequencies, and low-frequency output comes from dedicated subwoofers placed to suit the room.
How is a line array rigged?
With system-specific flying hardware and splay settings. Load ratings must be verified against the manufacturer's load table and approved by a qualified rigger.
Is a line array always better than point-source speakers?
No. In smaller rooms a point-source system is easier to deploy, cheaper and often gives a better result. Arrays earn their complexity in larger spaces.
