Pro LED Screens
LED video wall panels are chosen by pixel pitch first and everything else second. Pitch sets how close the audience can stand before the grid becomes visible, and it drives...
Filters
Sort Most relevant
No products found.
Try using fewer filters, or clear all filters.
LED video wall panels are chosen by pixel pitch first and everything else second. Pitch sets how close the audience can stand before the grid becomes visible, and it drives resolution, weight, power draw and price per square metre. This range covers indoor fine-pitch cabinets for studios and conference rooms through to high-brightness outdoor panels for festival stages and building facades. Use the comparison table below to match pitch and brightness to your room before looking at anything else.
Compare the range
Specifications below are taken from the product data for each item in this collection. Rows with fewer than two published figures are omitted. Sorted by price.
| Model | Pitch (mm) | Panel size | Brightness (nits) | Refresh (Hz) | Price (USD) |
|---|---|---|---|---|---|

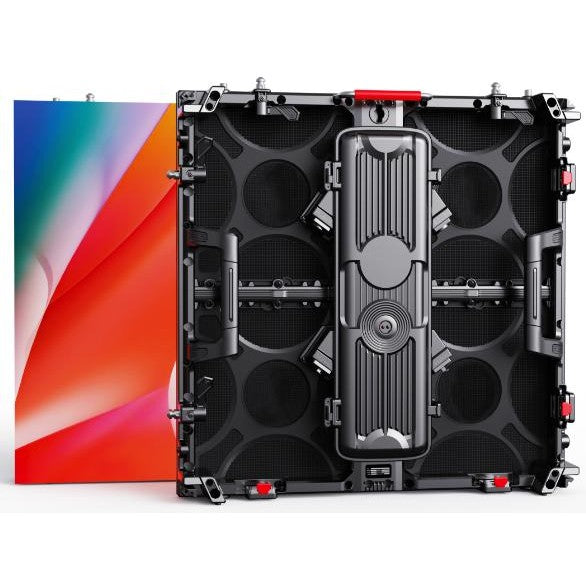

| BT-P3.9ODM500 | 3.9 | 500x500 mm | 5000 | 7680 | $1104.99 |
| BT-P3.9DM500 | 3.9 | 500x500 mm | 1000 | 7680 | $1298.99 |

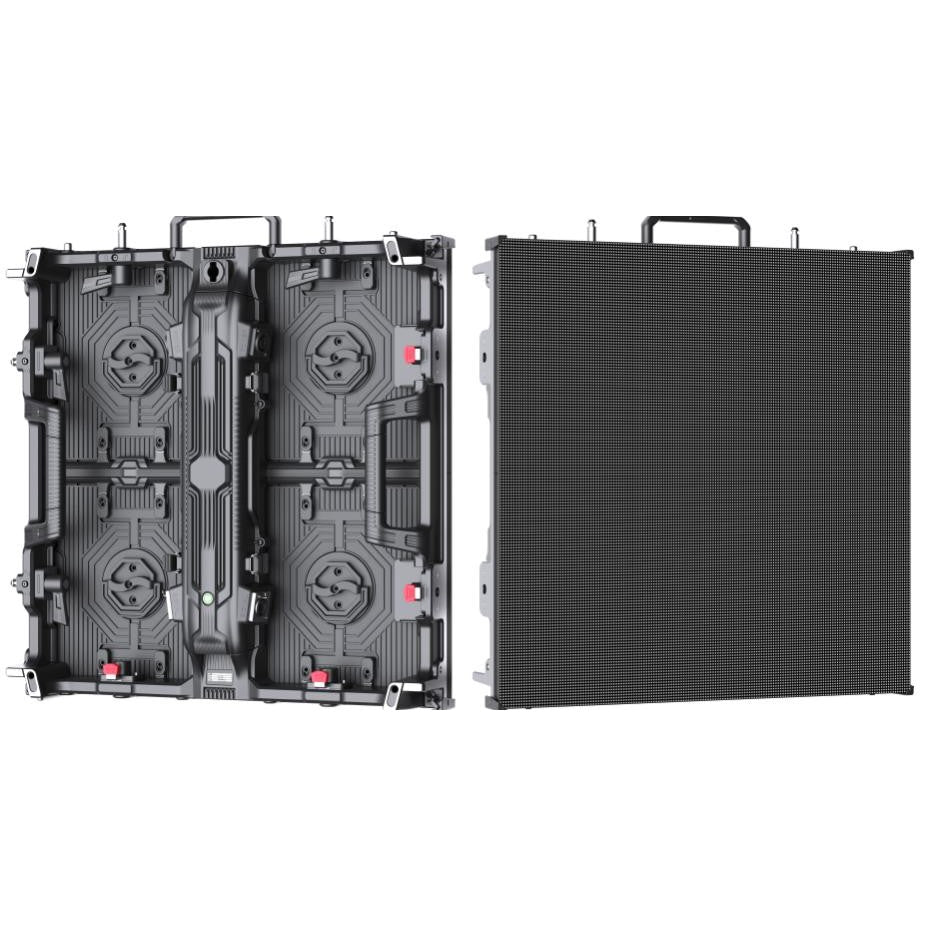

| BT-P4.8ODM500 | 4.8 | 500x500 mm | 5000 | 7680 | $1331.99 |
| BT-P2.9ODM500 | 2.9 | 500x500 mm | 5000 | 7680 | $1672.99 |

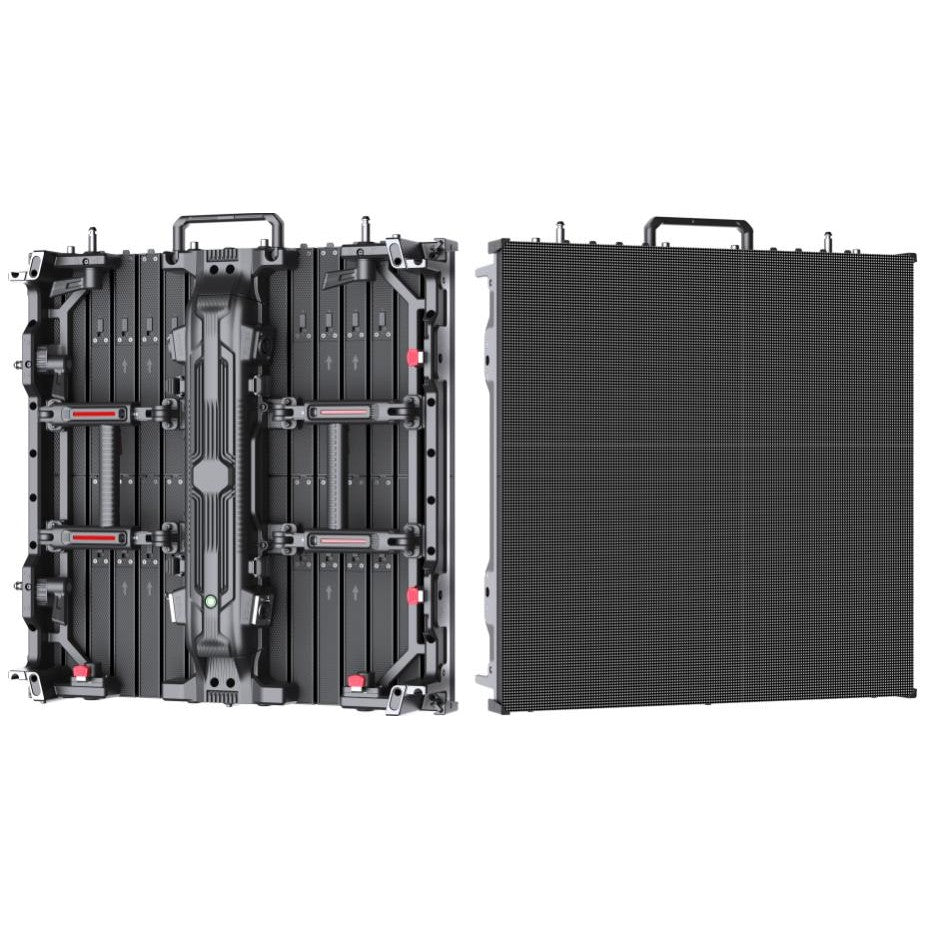

| New Flexible-Curve P2.6 Indoor 500X500 LED screen | 2.6 | 500x500 mm | — | — | $1914.99 |
| BT-P1.95DM500 | 1.95 | 500x500 mm | 1000 | 7680 | $2013.99 |

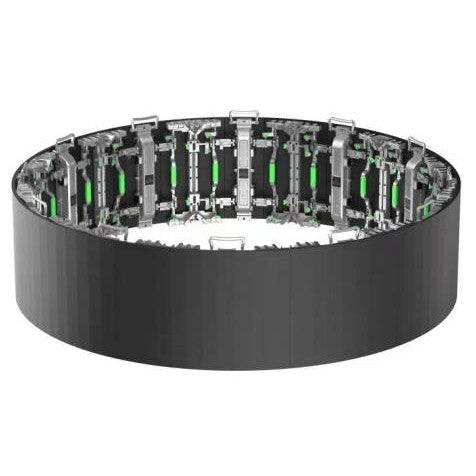

| New Flexible-Curve P1.95 Indoor 500X500 LED screen | 1.95 | 500x500 mm | — | — | $2398.99 |

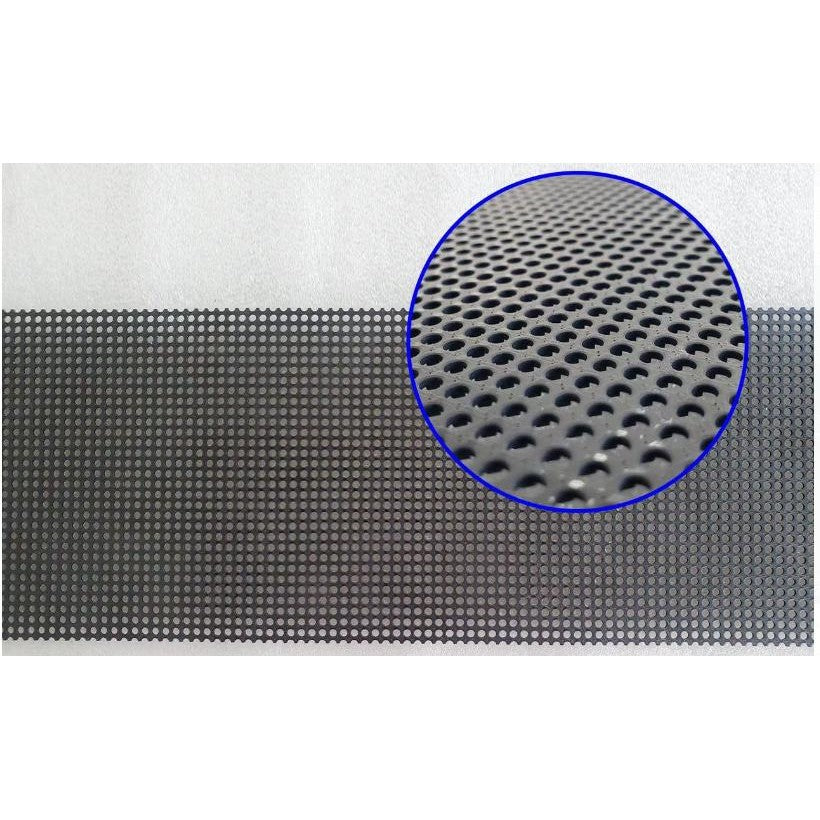

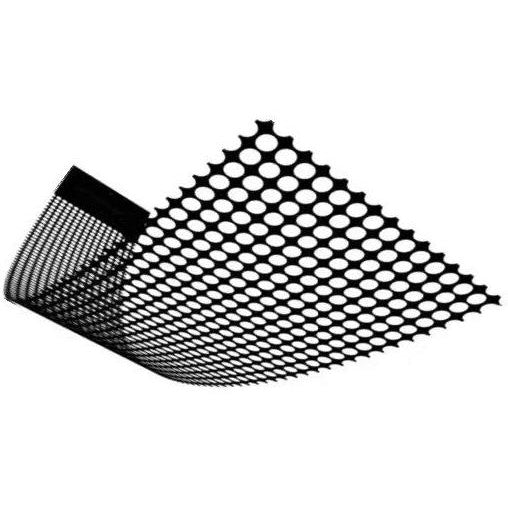

| Holographic invisible screen P3.91-3.91 | 3.91 | 1200*250 | — | — | $2992.99 |

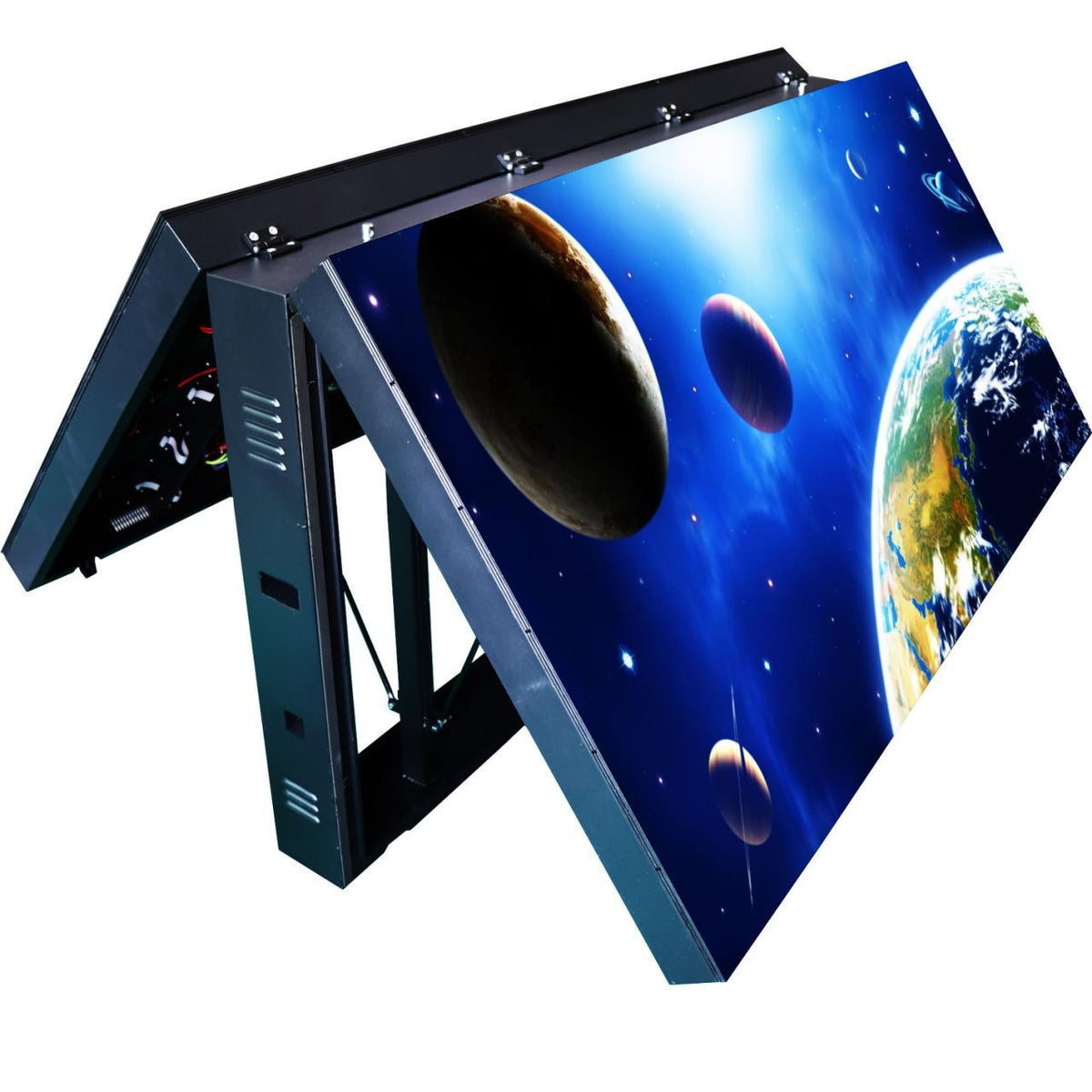

| BT-P2.5ODM960 | 2.5 | 960x960 mm | 5000 | 7680 | $3201.99 |
How to choose an LED panel
Start with viewing distance. The working rule across the industry is that the minimum comfortable viewing distance in metres is roughly equal to the pixel pitch in millimetres. A 3.9 mm panel starts looking clean at about 3.9 m and is comfortable from 8 to 12 m. If your front row sits 3 m from the screen, a 3.9 mm panel will show its grid; drop to 2.5 mm or finer.
Then set brightness by where the light comes from. Indoor rooms with controlled lighting are served by panels in the 800 to 1500 nit range. A stage with strong front wash needs more. Anything facing daylight, or sited outdoors, needs 4000 nits and upward, and the panel must carry a published ingress protection rating for its position.
Check refresh rate if a camera will ever see the screen. Panels at 1920 Hz look fine to the eye but can band on camera. For broadcast, live stream and any show with IMAG, specify 3840 Hz or higher. Several panels in this range run 7680 Hz.
Work out panel count from the cabinet size, not the pitch. Divide your target width and height by the cabinet dimensions and round up. A 500 x 500 mm cabinet makes a 3 x 2 m wall from 6 across and 4 down, 24 panels. Resolution follows from pitch: a 3 m wide wall at 3.9 mm is about 768 pixels across.
Finish with power and rigging. Maximum power draw per square metre, multiplied by your wall area, gives the worst-case load; average draw in normal content is usually around a third of that. Weight per square metre decides whether the wall can hang or has to be ground-stacked. Confirm both figures and the rigging method with a qualified rigger before you commit to a hang.
Frequently asked questions
What pixel pitch do I need?
Match it to your closest viewer. The minimum comfortable viewing distance in metres is roughly the pixel pitch in millimetres, so a front row at 4 m suits a 3.9 mm panel and a front row at 2 m needs 2 mm or finer.
What is the difference between indoor and outdoor panels?
Brightness and ingress protection. Indoor panels typically run 800 to 1500 nits with no weather rating; outdoor panels run 4000 nits and above and carry a published IP rating for rain and dust.
How many panels make a 3 x 2 m screen?
Divide by the cabinet size and round up. With 500 x 500 mm cabinets that is 6 across and 4 down, 24 panels. With 960 x 960 mm cabinets it is 4 across and 3 down, 12 panels.
Does refresh rate matter if there is no camera?
Much less. Refresh rate above 1920 Hz is mainly about avoiding scan lines and banding on camera. For broadcast or live stream, specify 3840 Hz or higher.
Are these priced per panel or per square metre?
Both appear in this range. Panels sold per square metre say so in the product title, so check the title and the specification table before comparing two prices.
